LQ056A3AG01

LQ056A3AG01 LQ056A3AG01 LQ056A3AG01

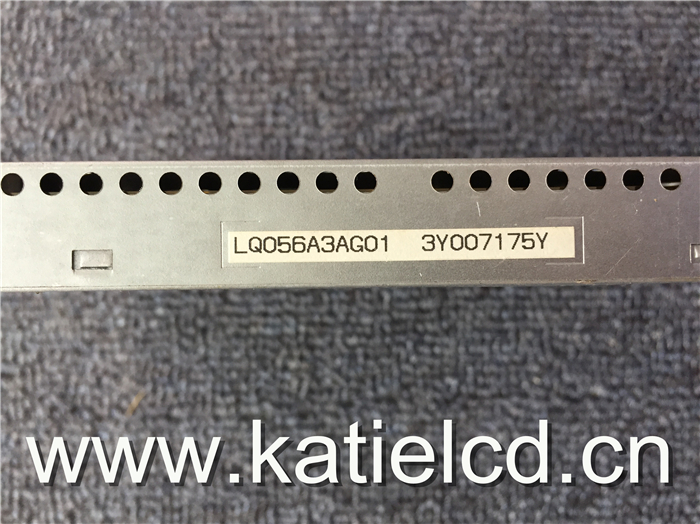

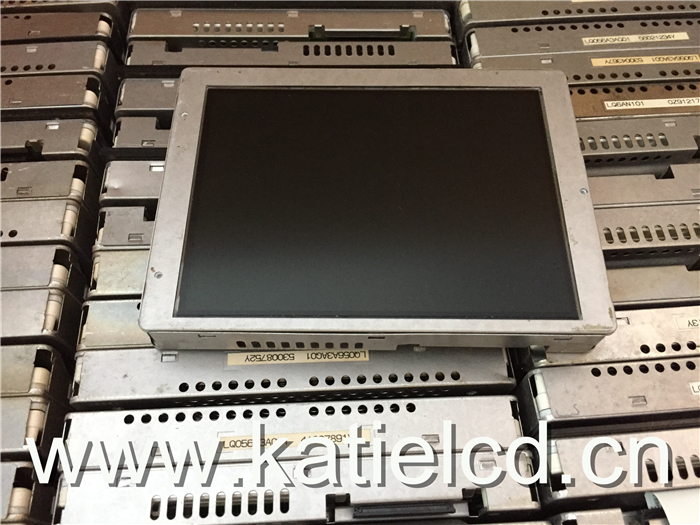

Product name : LQ056A3AG01
Item :
Details :
Manufacturer: Sharp                                                                  Model: LQ056A3AG01
Diagonal size: 5.6 inch                                                      type: a-Si TFT-LCD, LCD module
Resolution: 320(RGB)×234   71PPI                                      pixel arrangement: RGB vertical bar
Display area: 114.2 × 83.5 mm (H×V)                                 Appearance size: 140 × 102.7 mm (H×V×D)
Opening area: 120.0 × 89.4 mm (H×V)                               surface treatment: matte,Hard coating (3H)
Display brightness:250 cd/m² (Typ.)                                 Contrast: 60:1 (Typ.) (Transmission)
Recommended viewing angle: 6 o'clock                           Response time: 15/20 (Typ.)(Tr/Td) ms
Viewing angle: 65/65/40/65 (Typ.)(CR≥10)                       Display mode: TN, normally white display, transmissive
Support color: panchromatic                                             light source type:1 pcs CCFL, 25K hours, with inverter
Touch technology: No touch                                             Application products:Industry, game consoles
Voltage supply: 12V (Typ.)                                               Interface type:Analog RGB + Composite Video connector, 24 pins
Operating temperature: - 0 ~ 65 °C                                   Storage temperature: -30 ~80 °C
Packing feature: -                                                             weight:250±20g
Packing box size: 388×334×263 mm (L×W×H))
