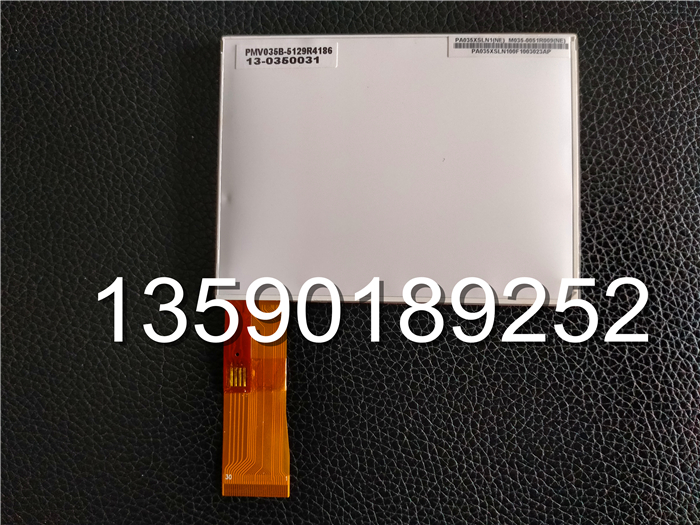

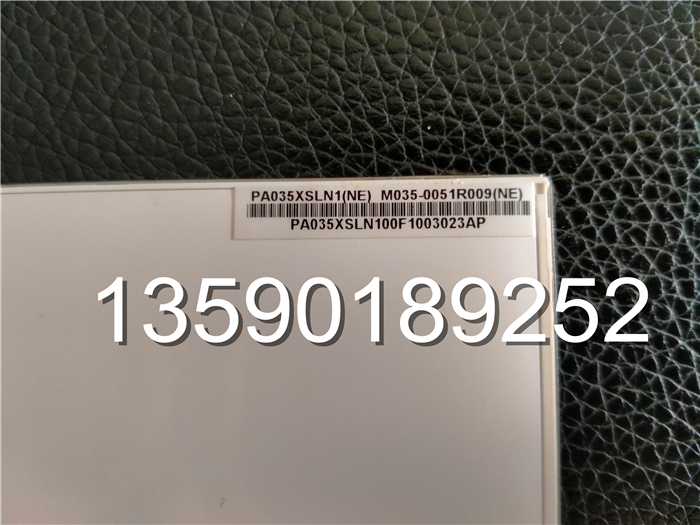

PA035XSL

PA035XSL PA035XSL PA035XSL PA035XSL
Product name : PA035XSL
Item :
Price : 120RMB
Details :
Manufacturer: Yuan Tai (PVI)                                               Model: PA035XSL
Diagonal size: 3.5inch                                                          type: a-Si TFT-LCD, LED module
Resolution: 320(RGB)×234,113PPI                                   pixel arrangement: RGB vertical bar
Display area: 71.6(horizontal)×52.65 (vertical) mm              Appearance size:83.5(W)×63.1(H)× 3.9(D)mm
Opening area: 73.6 (horizontal) × 54.65(vertical) mm          surface treatment: matte
Display brightness: 250 cd/m² (Typ.)                                    Contrast: 350:1 (Typ.) (Transmission)
Recommended viewing angle: 6 o'clock                               Response time: 15/25 (Typ.)(Tr/Td) ms
Viewing angle:50/50/15/35 (Typ.)(CR≥10)                            Display mode: TN, normally white display, transmissive
Support color: panchromatic                                                 light source type: 3S2P WLED, 30K hours, no driver
Touch technology: No touch                                                  Application products: Industrial and subway gate display
Voltage supply: 3.3V (Typ.)(VCC)                                         Interface type:TFT Specific Analog RGB , 30 pins , FPC
Operating temperature: -20 ~ 70 °C                                      Storage temperature: -30 ~80 °C
 weight: 32±5g/pcs
